Flexible rail connection for variable geometry decks
- Allows the connection of rails at variable angles
- Easily adapts thanks to its bending capacity
- Compatible with several types of Grad rails
- Ensures a strong and durable connection
- Maintains accessibility to the disassembly system
- Ideal solution for complex decks (angles, curves)
Technical specifications
The Adjustable Bracket Grad® is designed to ensure the connection of rails in deck configurations requiring variable angles.
Thanks to its stainless steel design and bending capacity, it easily adapts to site constraints and allows for the creation of complex structures (angles, bevels, curves) with ease.
A true connecting element, it guarantees structural continuity between the rails while maintaining accessibility to the clipping system.
Simple to implement, it offers a reliable and durable solution for technical decks with non-standard shapes.
| Material | Stainless steel 304 A2 |
|---|---|
| Weight | 35.3 g |
| Packaging | Kit including plates + fasteners (depending on M6 or M8 version) |
| Dimensions | 160 x 16 x 2 mm |
| Finish | Raw stainless steel |
ADAPTABILITY
Allows for easy creation of variable angles and complex shapes.
RELIABILITY
Ensures a robust connection between rails, even in atypical configurations.
SIMPLICITY
Bends by hand and installs quickly with appropriate fasteners.
Instructions for use
Designed to adapt to the most varied configurations, the adjustable plates allow for variable-angle rail connections while ensuring the rigidity of the structure.
Their flexible bracket can be easily shaped by hand to match the desired angle. Once the position is defined, the rails are fixed using the appropriate fasteners.
This solution also offers the possibility of connecting different rail profiles, such as a PR39 and a PR24, simply by using the fasteners adapted to each rail.
Fasteners adapted to the rails
To ensure reliable and adapted fastening for each configuration, the adjustable plates are available with two types of fasteners.

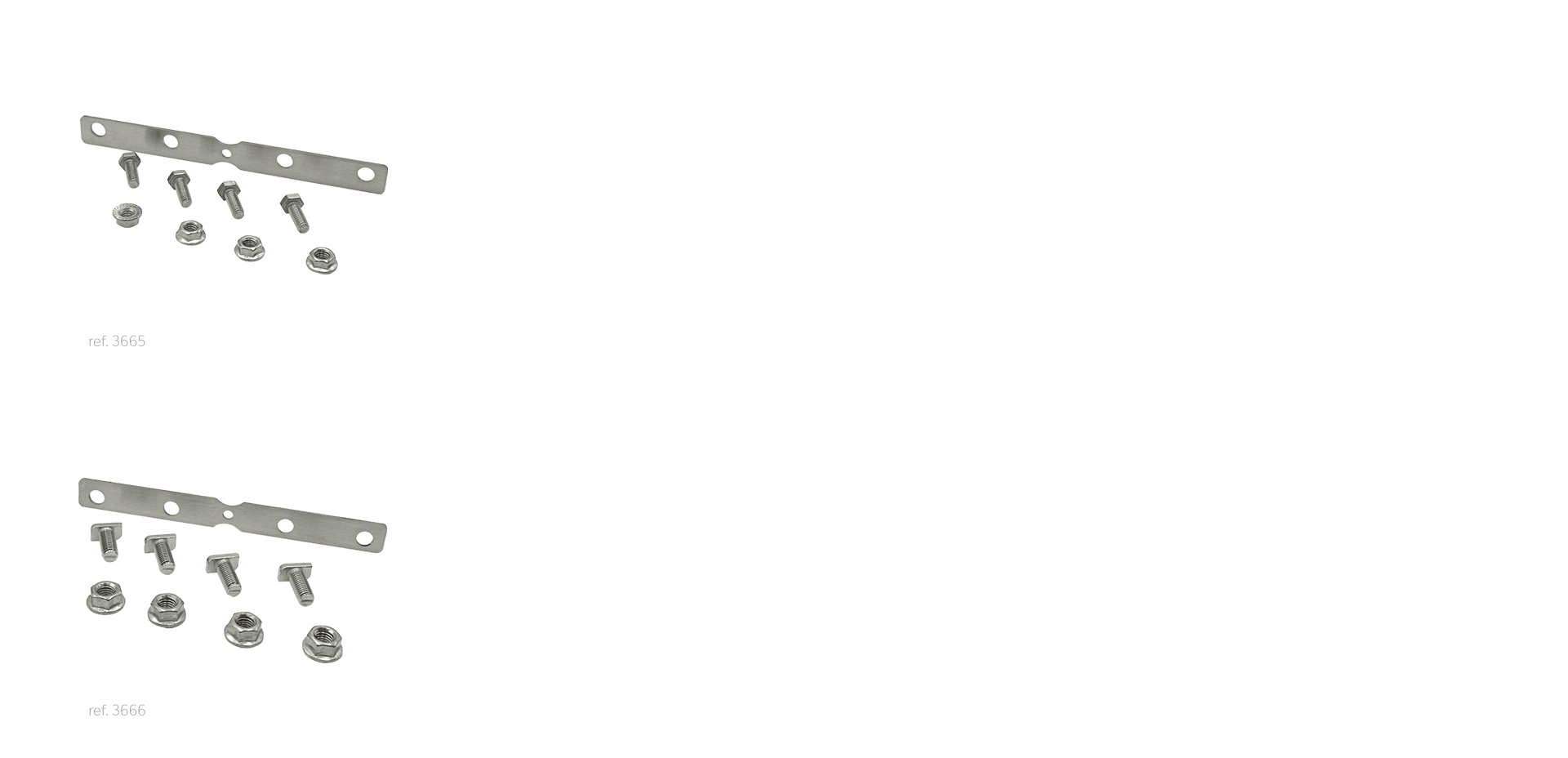

PR24, Top Rail and UR18 rails are compatible with M6 fasteners, while PR39, PR56 and UR33 rails require M8 fasteners.
Choosing the right fasteners for your rail ensures a robust connection and implementation in accordance with the system’s recommendations.
